Detailed Product Description
2012 NEWEST MODEL RACING
ATV
LONCIN 250CC WATER-COOLED ENGINE
TOP SPEED:11OKM/H
ON ROAD LEGAL
LONG SEAT FOR 2 PASSENGERS

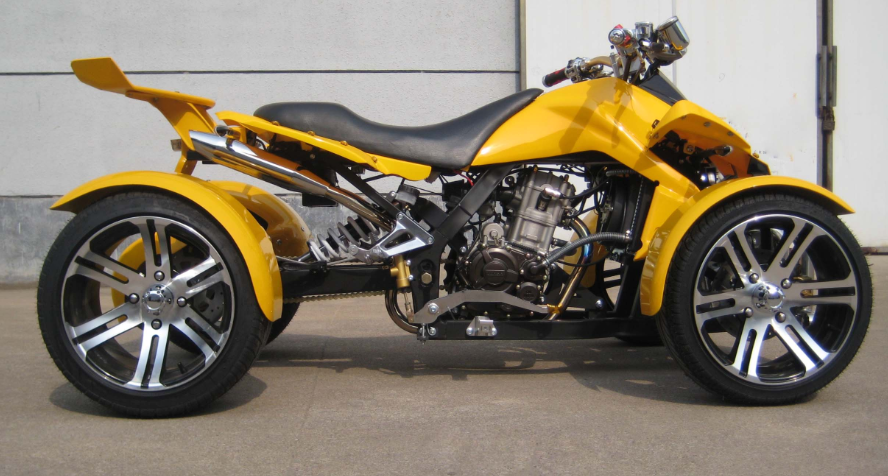

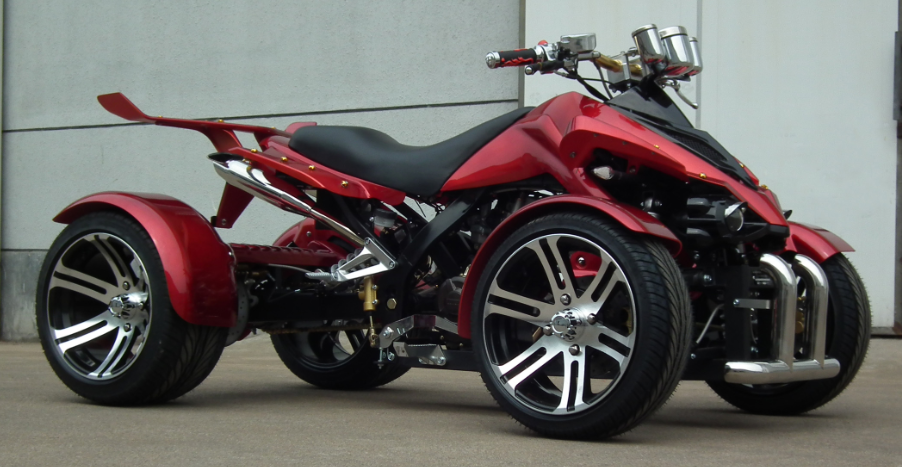

2012 NEWEST MODEL RACING ATV
Top speed:110km/h(66mph)
On road legal
Long seat for 2 passengers
Dimension
(L*W*H):178x111x78(cm)
Ignition:CDI
Seat height:70cm
Wheelbase:140cm
Ground clearance:11cm
Length of rear fork:65cm
Front Tire:185/30-14
Rear Tire:270/30-14
Braking Method: Front disc brake
Rear disc brake
Drive Train:Chain Drive
Engine: 250cc 1cylinder,4stroke,water-cooled.
4-speed gearshift and reverse gear
Max.Power(kw/r/min)
12.5/7000
Max.Torque (N.m/r/min) 18.5/5000
Bore and Stroke(mm×mm) 83.0×64.5
Front swingarm top quality
steel board incise
Meter: Luxury LED or digital
Muffler : double-stainless steel"
Suspension: hydraulic air-cell damp ,
Start Mode: Electric Start
Battery: 12V 14Ah
G.W/N.W: 255kgs/225kgs
Packing Size(L*W*H): 1780mm*1110mm*710mm
Container Loading Capacity: 18pcs/20GP Container;
39pcs/40GP /40HQ
Feature:
A.
14"/14" aluminium car rims
B. 250cc
WaterCooled LONCIN With Reverse Gear Engine
C. Alloy
handlebar & Lever & stainless steel front bump
D. Steel
board Incise Upper&Lower swing arms
E. Top
Quality aluminium multi-function switch,high performance
F. Optional
speed meter available ,3 Light Connect digital Speedometer
G. Alloy
footpedal CNC real for 2 passengers used comfortably.
H. high
performance CNC parts: brake pedal, foot-rest, speed-meter
block, handlebar balance block.
I. 3 Disc
Hydraulic parking Brake System,added with independent
handle-brake for front wheels
J. Double
stainless steel Exhaust, and muffler hot pipe double layer
steel , no hotness direct to outside
K. seat
20cm longer than normal 2 passengers road quad's, more
humanized..
L. Top
quality taiwness brand inner air-cell damp suspension,more
comfortable.
M. NEW frame, new
fender,with alluminium rear spoiler completely
